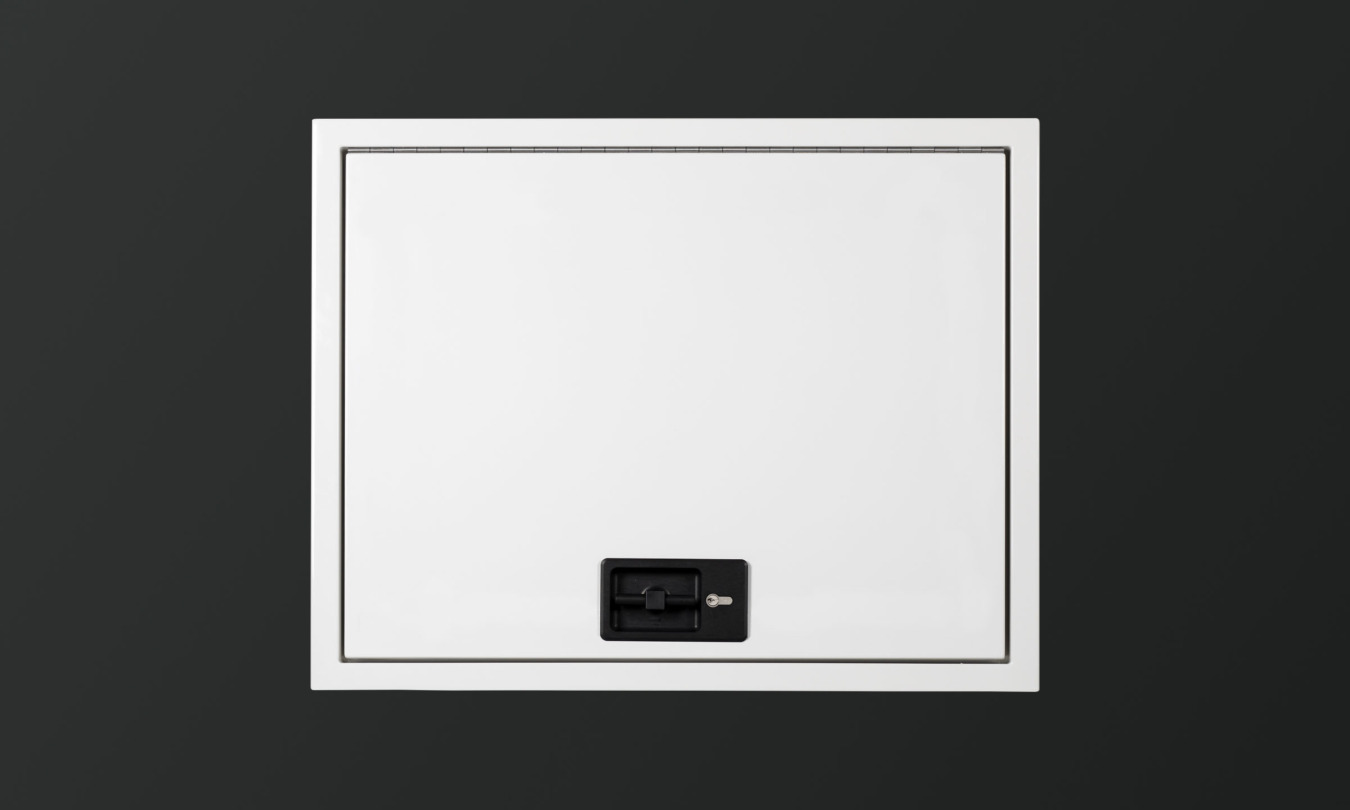

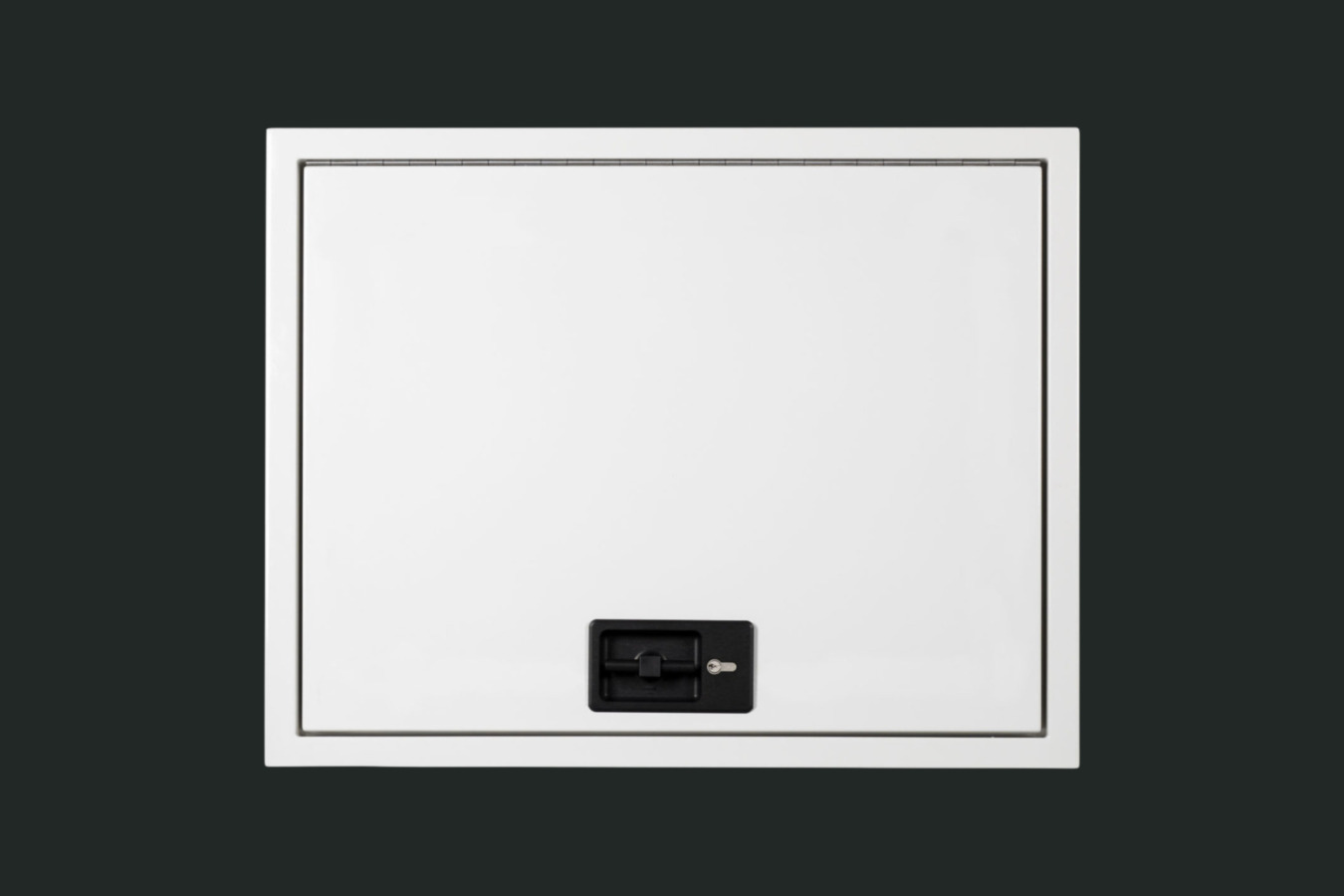

Hatch (LU-38)

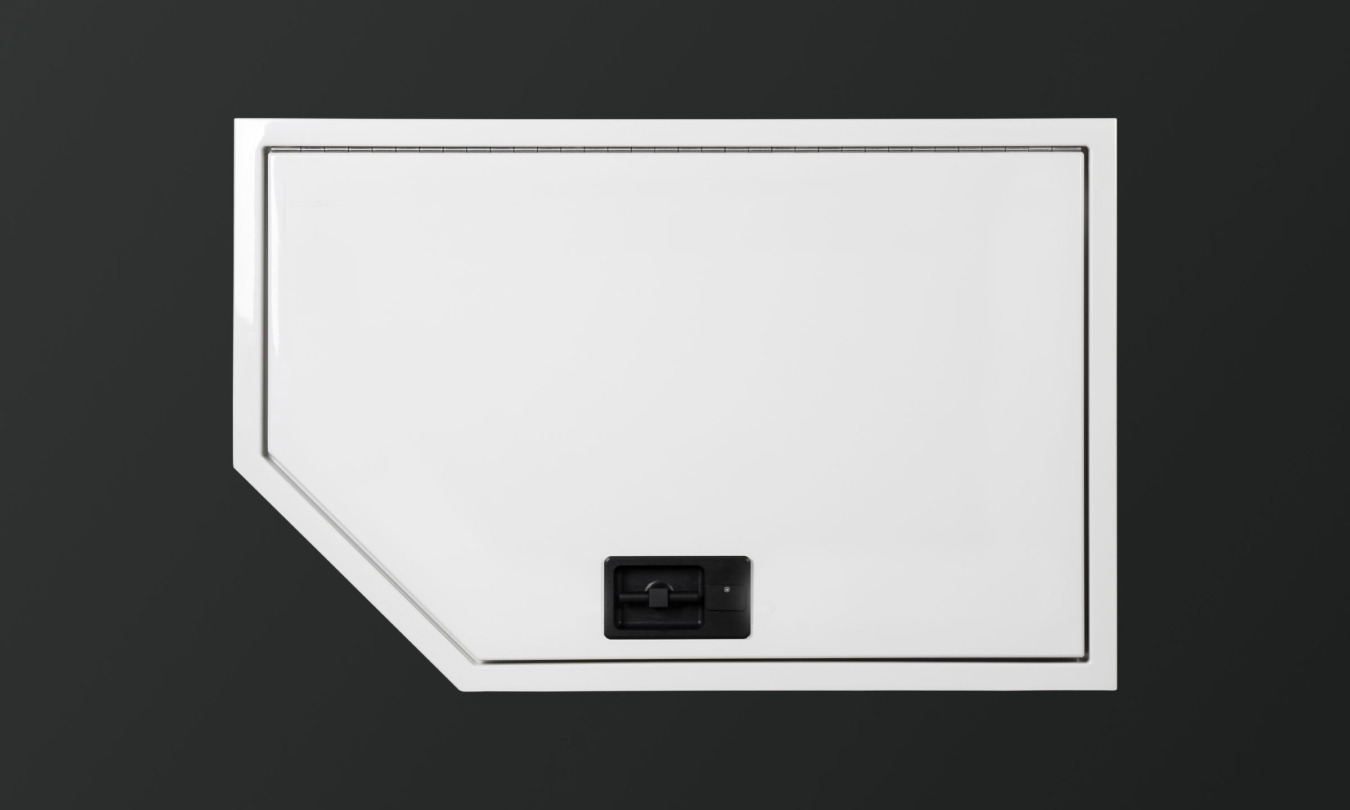

Hatch (LU-45R)
Good to
know
Insulated fiberglass-reinforced plastic
Approximate color RAL 9003
Construction without thermal bridge
Based on smart material choices

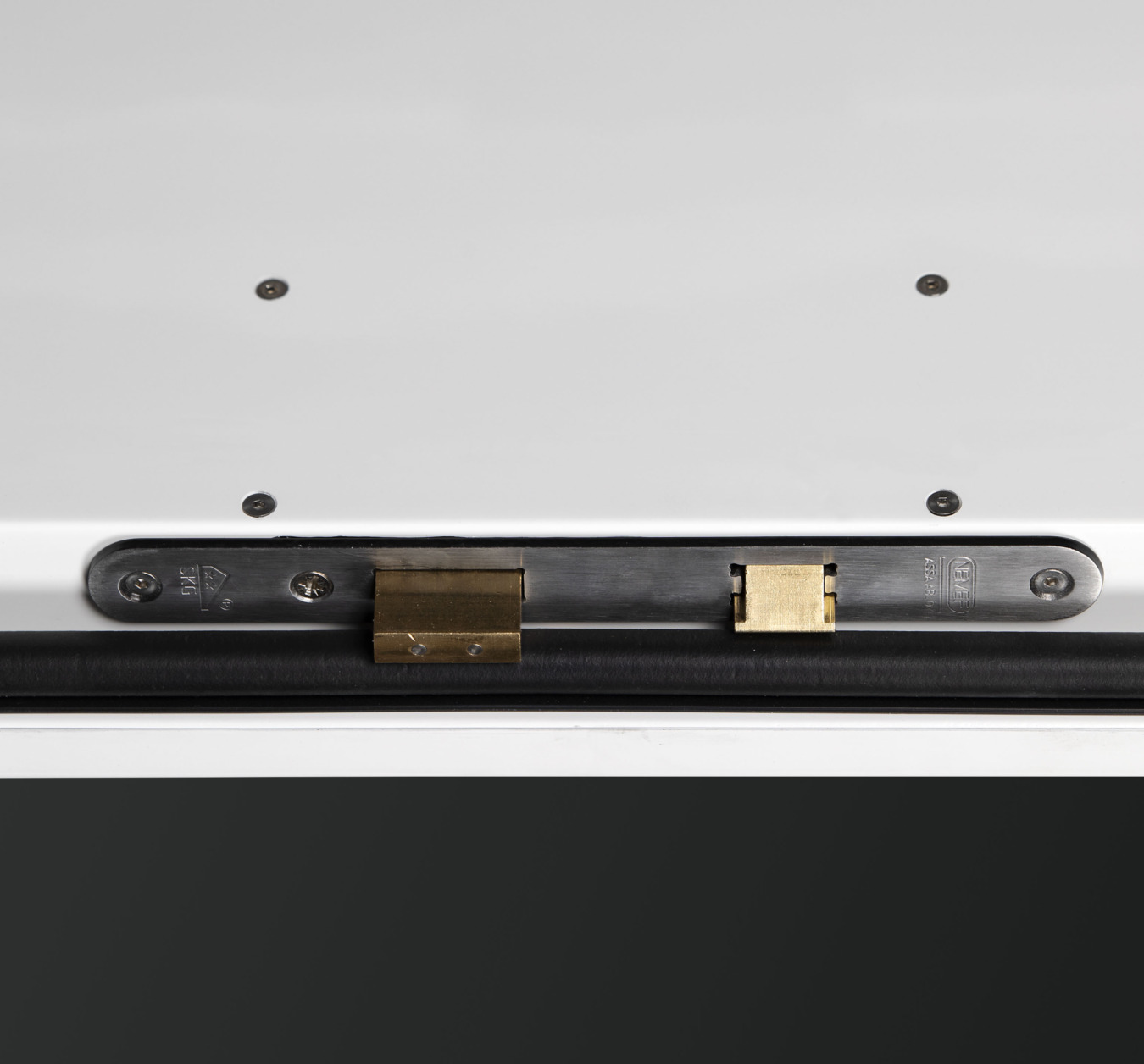

Aluminum locking handle
Black anodized
Flat structure
Nearly flush to wall

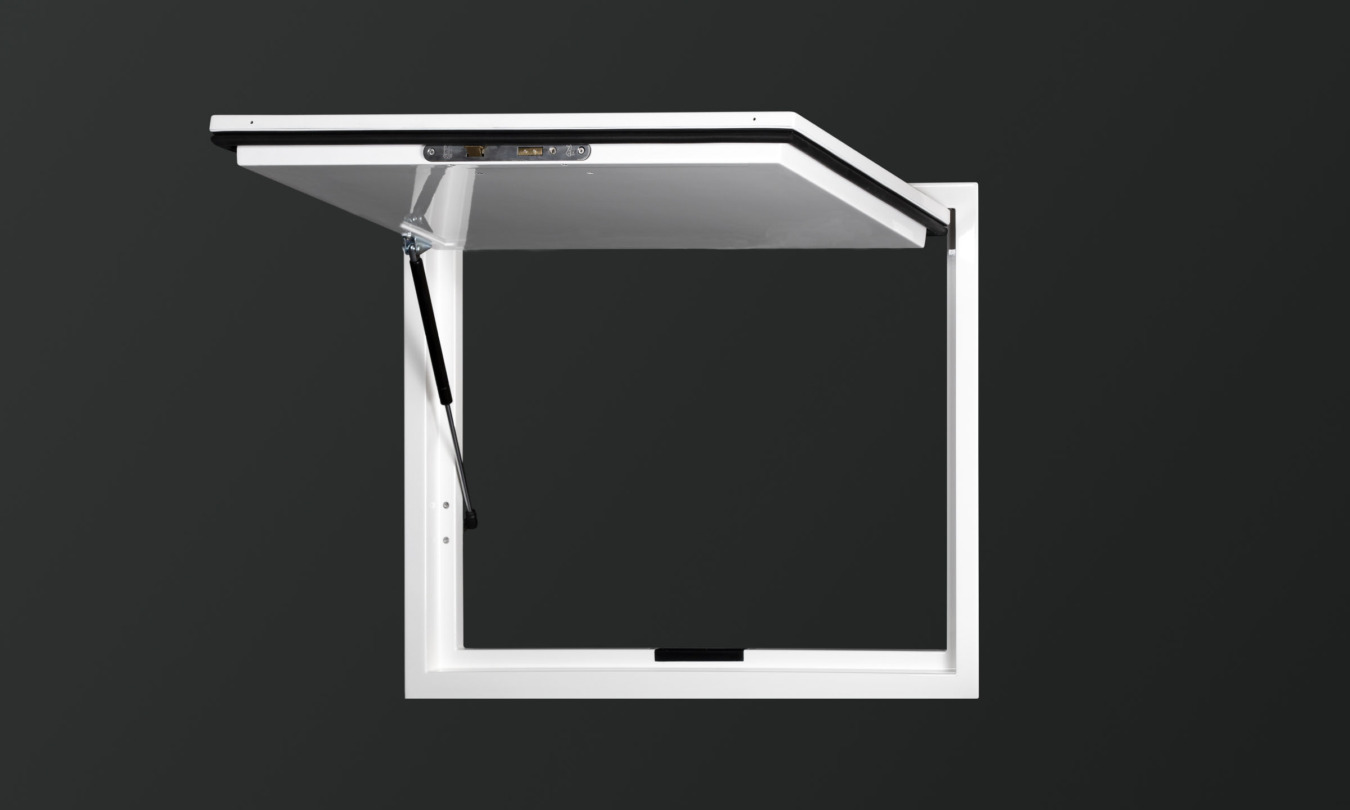

Opening angle 110⁰
For maximum inlet
Keyed alike
With other products
| Type | Size | Price |
|---|---|---|
| LU-03 | 46 x 33 | €849,- |
| LU-03 V | 33 x 46 | €849,- |
| LU-20 | 65 x 40 | €887,- |
| LU-20 V | 40 x 65 | €887,- |
| LU-30 | 60 x 50 | €916,- |
| LU-30 V | 50 x 60 | €916,- |
| LU-35 | 99 x 40 | €1039,- |
| LU-35 V | 40 x 99 | €1039,- |
| LU-38 | 80 x 60 | €1055,- |
| LU-38 V | 60 x 80 | €1055,- |
| LU-40 | 99 x 60 | €1079,- |
| LU-40 V | 60 x 99 | €1079,- |
| LU-45 L | 99 x 60 | €1185,- |
| LU-45 LV | 60 x 99 | €1185,- |
| LU-45 R | 99 x 60 | €1185,- |
| LU-45 RV | 60 x 99 | €1185,- |
| LU-48 | 116 x 96 | €1337,- |
| LU-48 V | 96 x 116 | €1337,- |
| LU-50 | 170 x 55 | €1433,- |
| LU-55 | 170 x 61 | €1477,- |
| LU-60 | 186 x 61 | €1515,- |
- Our prices do not include VAT.
What wall thickness are Outbound hatches suitable for?
Our hatches are easy to use in a wall of 60 to 80 millimeters. If the wall thickness is less than 60 millimeters, the wall must be filled and reinforced on the inside by means of a frame. For wall thicknesses above 80 millimeters, the frame does not extend to the interior side of the wall.
Can the lock be made keyed alike with the other products in the order?
The products in your order will have identical locks, unless otherwise specified by you.
Are sizes on demand possible?
The fiberglass-reinforced plastic parts are produced as a single piece using molds. Because of this, we provide beautiful seamless products, but sizes on demand are not available.
Are the products sprayable?
The fiberglass-reinforced plastic parts are gel coated. Sanding these lightly allows the frame to be sprayed without any problems. For this purpose, we can supply the self-adhesive sealing rubbers separately. Please inform us at point of order.
