Doors, fiberglass-reinforced polyester with insulation

The doors are specifically designed for use in expedition vehicles. The products are constructed of fiberglass-reinforced plastic with a high-insulating foam core. In combination with high-quality materials, this makes the products extremely suitable for the most extreme conditions and special adventures.

Good to
know

Textured fiberglass surface

Approximate color RAL 9003

Construction without thermal bridge

Based on smart material choices

Flat structure

Nearly flush to wall

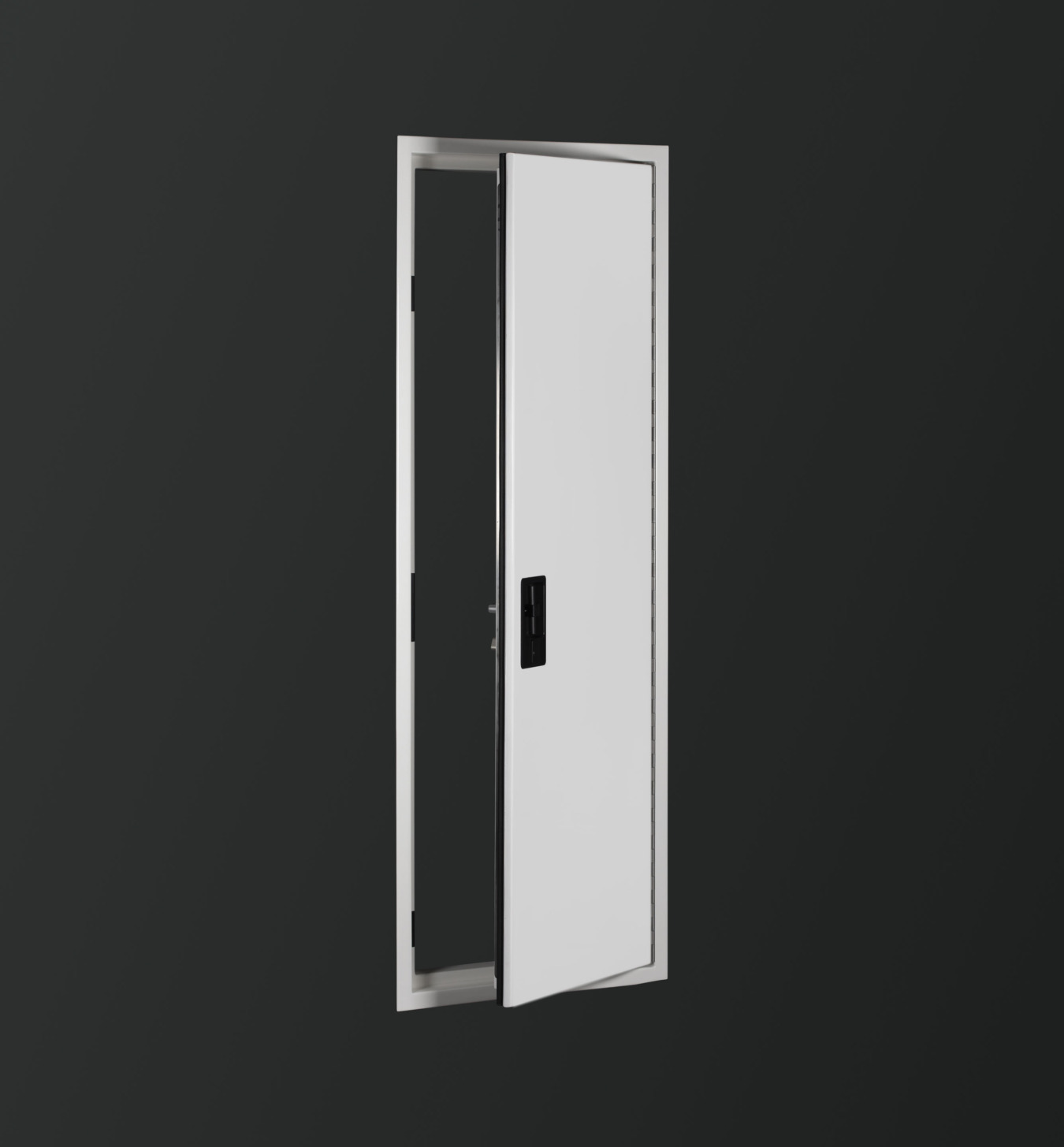

Opening angle 180⁰

For maximum inlet

Keyed alike

With other products

Formats and prices

Shape Type Dimensions Weight Price
DE-10R 55 x 170 19,2 kg €1890,-
DE-15R 61 x 170 20,5 kg €1936,-
DE-20R 61 x 186 22,3 kg €1977,-
  • R: hinge on the right, seen from outside.
  • Dimensions are clear opening sizes: the size of the opening you can pass through.
  • Our prices do not include VAT.
Shape Type Dimensions Weight Price
DE-10L 55 x 170 19,2 kg €1890,-
DE-15L 61 x 170 20,5 kg €1936,-
DE-20L 61 x 186 22,3 kg €1977,-
  • L: hinge on the left, seen from outside.
  • Dimensions are clear opening sizes: the size of the opening you can pass through.
  • Our prices do not include VAT.

Options

Type Fits Weight Price
RA-05FIX + BL-05 white DE-10, DE-15, DE-20 6,4 kg €963,-
RA-05FIX + BL-05 black DE-10, DE-15, DE-20 6,4 kg €963,-
  • Our prices do not include VAT.
Type Fits Weight Price
HO-PL-10 DE-10 4,3 kg €404,-
HO-PL-15 DE-15 4,4 kg €424,-
HO-PL-20 DE-20 4,7 kg €424,-

Our prices do not include VAT.

Frequently asked questions

The panel is made of fiberglass-reinforced epoxy with a high glass content, which keeps it stable in heat and cold. As a result, the glass weave is slightly visible on the surface. This is a natural feature of the material, not a defect.

Yes. The fibreglass-reinforced plastic parts are gel coated. After sanding them lightly, you can spray them with regular car paint. The self-adhesive rubber seals are supplied loose as standard, so you can spray first and apply the seals afterwards. We advise NOT to spray the products in a dark colour.

Read our spraying instructions for how to remove, spray and refit your product.

The products in your order will have identical locks, unless otherwise specified by you.

The fiberglass-reinforced plastic parts are produced as a single piece using molds. Because of this, we provide beautiful seamless products, but sizes on demand are not available.

The insect screen is an option added by most customers, but it is not a necessity.

Yes, see the right hinged (R) and left hinged (L) versions.

Our doors are easy to use in a wall of 60 to 85 millimeters. If the wall thickness is less than 60 millimeters, the wall must be filled and reinforced on the inside by means of a frame. For wall thicknesses above 85 millimeters, the frame does not extend to the interior side of the wall.

Why these doors belong in your expedition vehicle or camper?

A door in an expedition vehicle needs to do more than just open and close. Our doors are designed for long-term use in varying conditions. They are lightweight, well-insulated, and fit flush with the vehicle wall. Thanks to the flat exterior, there are no protruding parts—beneficial for both aerodynamics and safety. The 180° opening angle offers maximum accessibility, even in tight spaces. With robust materials and a well-thought-out design, this door is a reliable choice for any professionally built vehicle.

Discover this Ford F550 Expedition vehicle by Supertramp Campers

Materials and construction

The door is built with a durable construction. Both the interior and exterior are made from glass fiber reinforced plastic (GFRP), which is strong, impact-resistant, and suitable for outdoor use. Inside, a closed-cell foam core provides high insulation and prevents thermal bridging. This structure offers a good balance between strength and weight, important for vehicles with limited load capacity. The lock housing is made of glass fibre-reinforced plastic (GFRP), has no thermal bridge and is extremely light. Its flat design ensures the door fits flush with the wall, simplifying installation and creating a clean, seamless finish without protruding parts.

Options and customisation for Outbound doors

Our doors are available with various options that enhance usability and functionality:

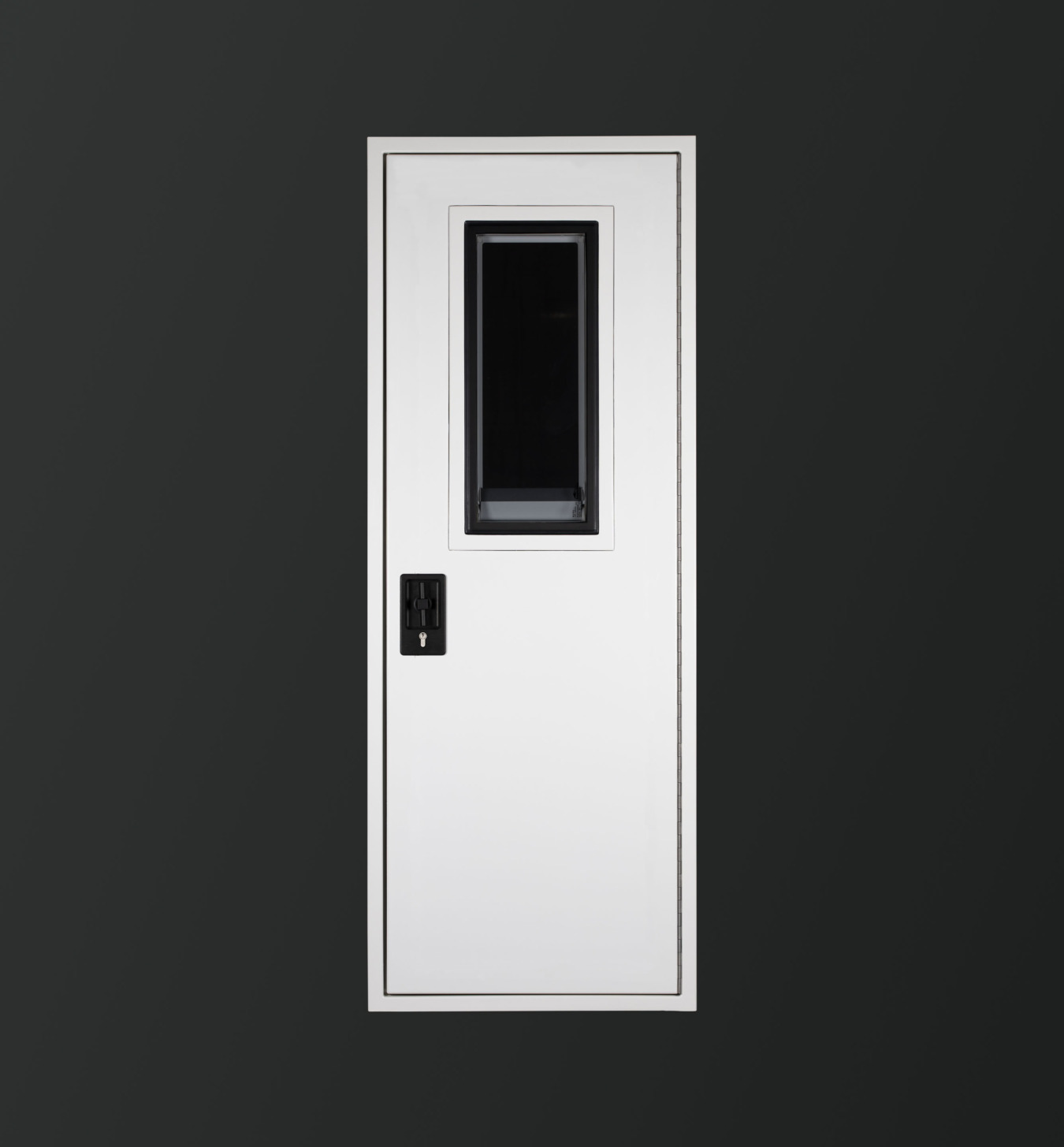

  • A fixed window (RA‑05 Fixed) can be integrated into the door for natural light without compromising insulation. For insect protection, a fly screen (HO‑PL) can be mounted behind the door panel.
  • The door comes standard with a keyed-alike lock, allowing one key to operate multiple locks within the vehicle, practical and efficient for daily use.
  • Custom finishes are also possible: the door leaf is ready for painting. Thanks to the gelcoat layer, the surface can be sanded and finished in any color to match the vehicle design.
  • Our doors can be combined with pleated fly screens for ventilation without insects, ideal in warm or humid environments.
