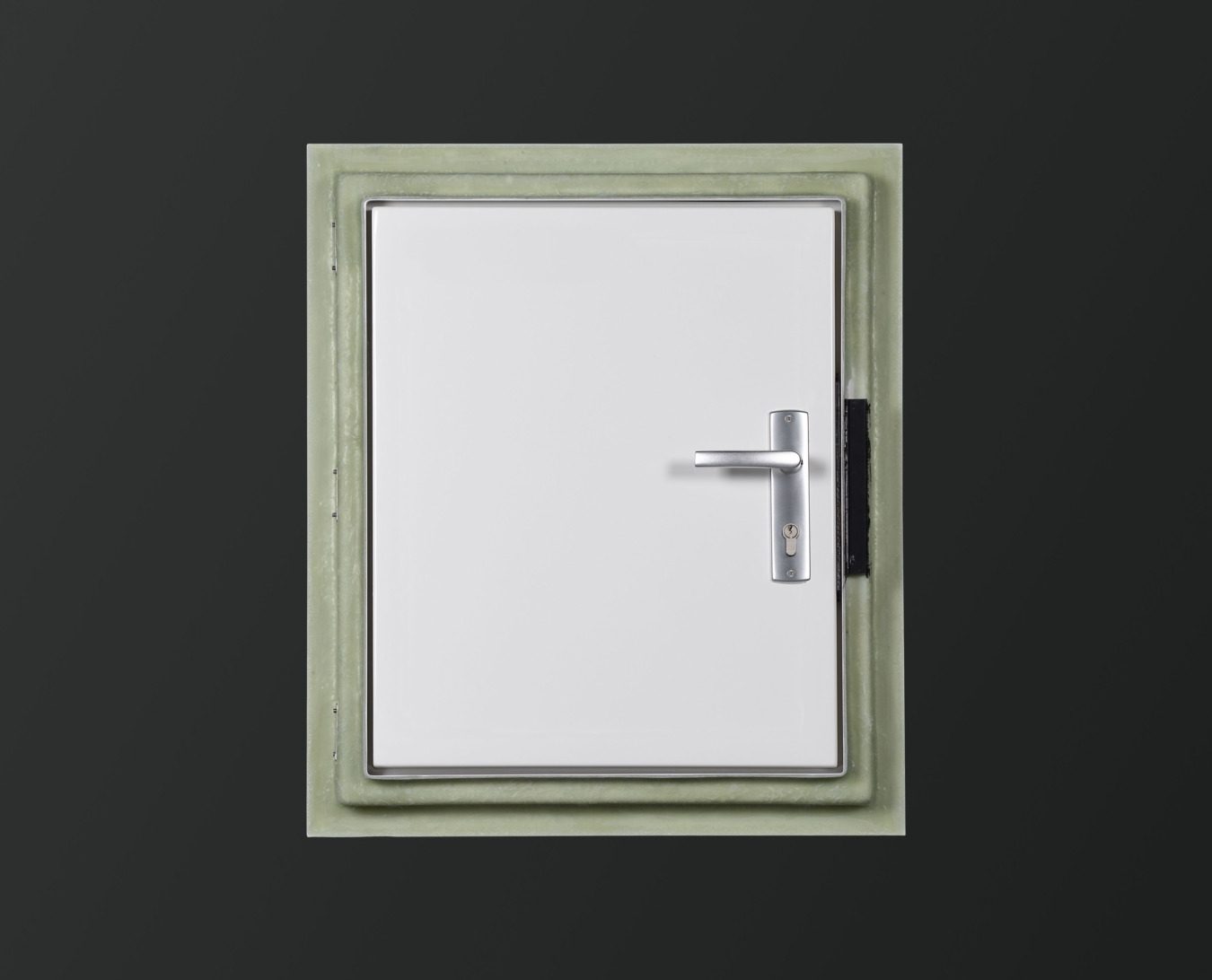

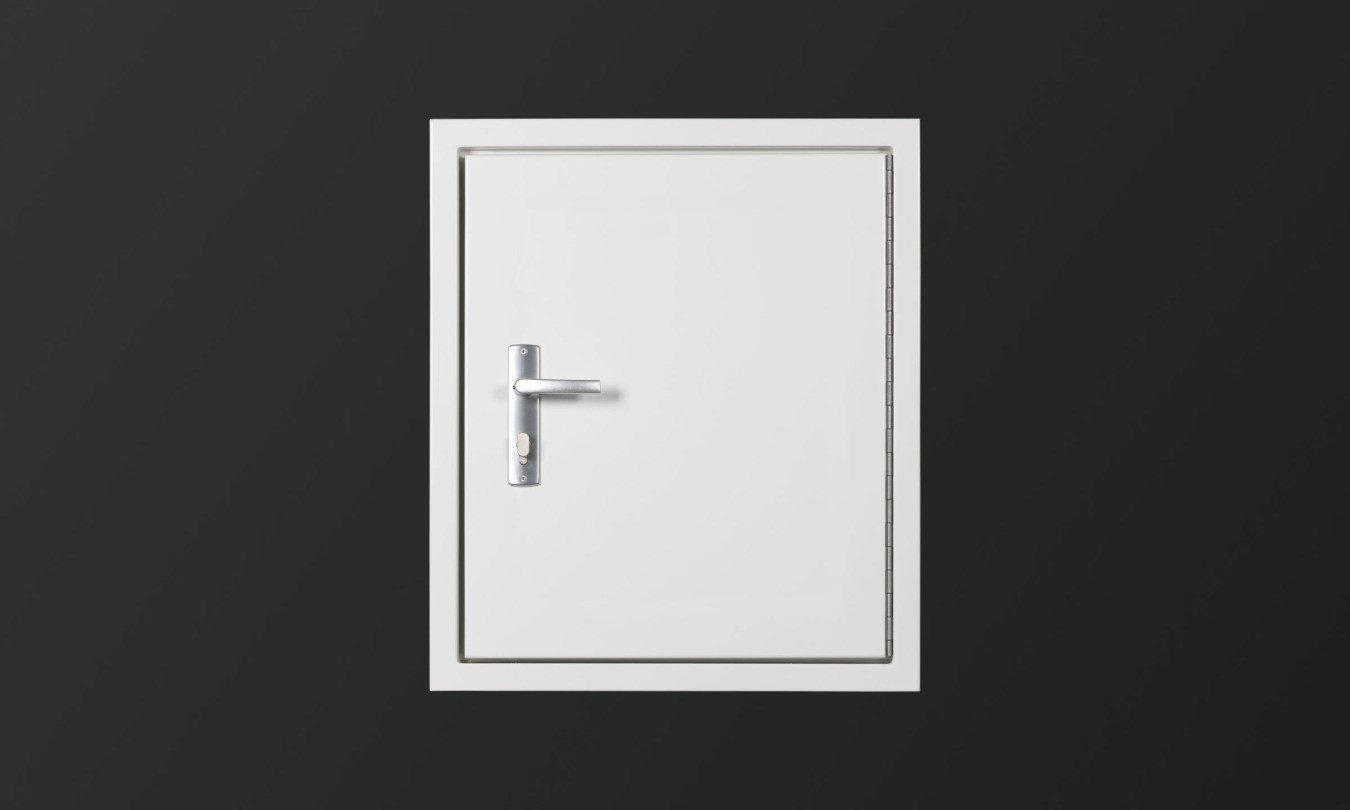

Cabin door (CD-30VR)
Good to
know
Insulated fiberglass-reinforced plastic
Approximate color RAL 9003
Construction without thermal bridge
Based on smart material choices
Aluminium locking handle
Black anodized
Flat structure
Nearly flush to wall
Opening angle 180⁰
For maximum inlet
Keyed alike
With other products
| Type | Size | Price |
|---|---|---|
| CD-30VL | 50 x 60 | €928,- |
| CD-30VR | 50 x 60 | €928,- |
| CD-38VL | 60 x 80 | €1054,- |
| CD-38VR | 60 x 80 | €1054,- |
| CD-40VL | 60 x 99 | €1091,- |
| CD-40VR | 60 x 99 | €1091,- |
- Our prices do not include VAT.
For what wall thickness are Outbound cabin doors suitable?
Our cabin doors are easy to use in a wall of 60 to 85 millimeters. If the wall thickness is less than 60 millimeters, the wall must be filled and reinforced on the inside by means of a frame. For wall thicknesses above 85 millimeters, the frame does not extend to the interior side of the wall.
Can the lock be made keyed alike with the other products in the order?
The products in your order will have identical locks, unless otherwise specified by you.
Is the cabin door available with either left or right hand opening?
Yes. Please inform us accordingly when you place your order.
Does the cabin door turn toward the living area or toward the driver's cab?
The cabin door swings open to the living area.
Are sizes on demand possible?
The fiberglass-reinforced plastic parts are produced as a single piece using molds. Because of this, we provide beautiful seamless products, but sizes on demand are not available.
Are the products sprayable?
The fiberglass-reinforced plastic parts are gel coated. Sanding these lightly allows the frame to be sprayed without any problems. For this purpose, we can supply the self-adhesive sealing rubbers separately. Please inform us accordingly when ordering.
