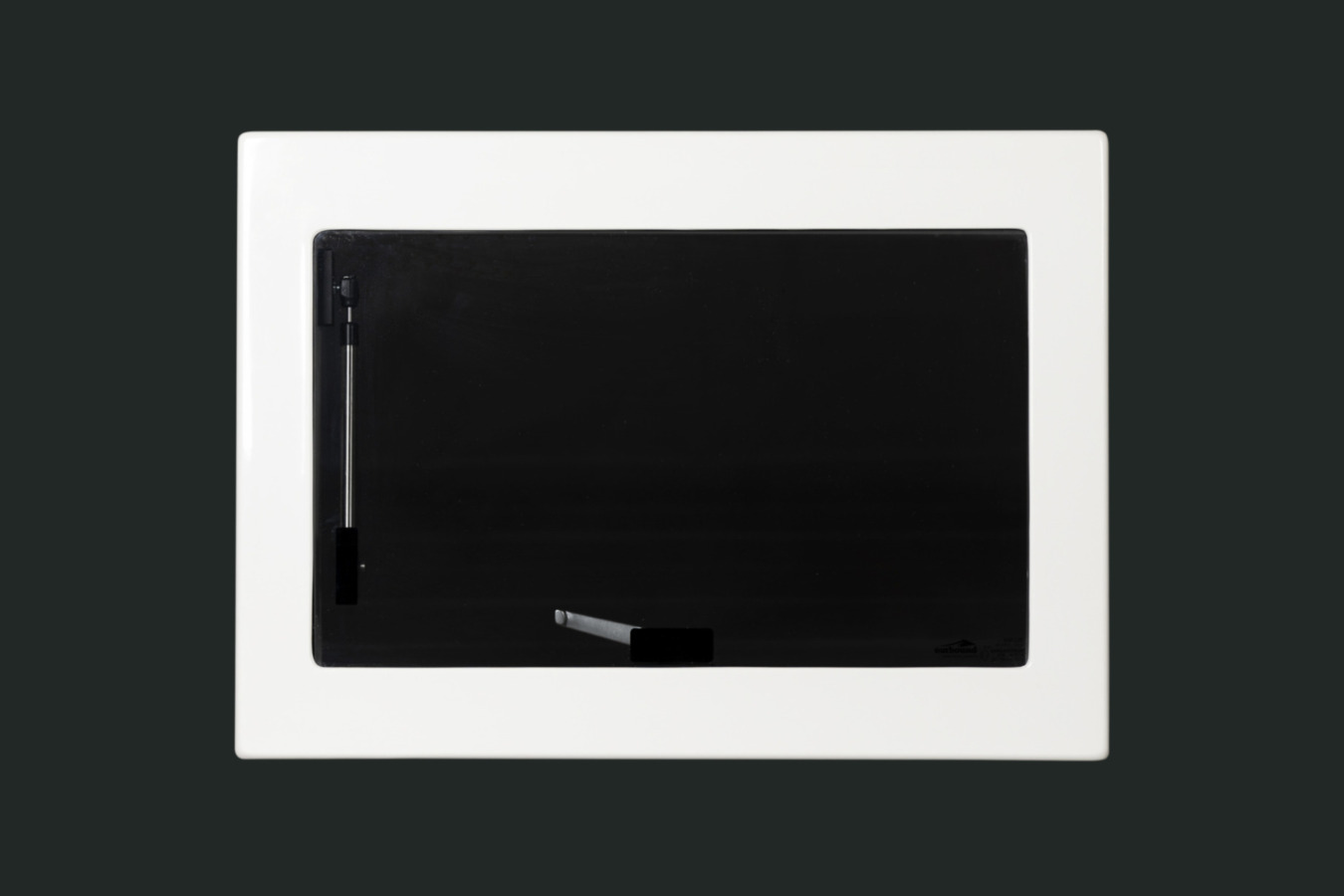

Skylight (DR-20)
Cover plate (RCP-20)

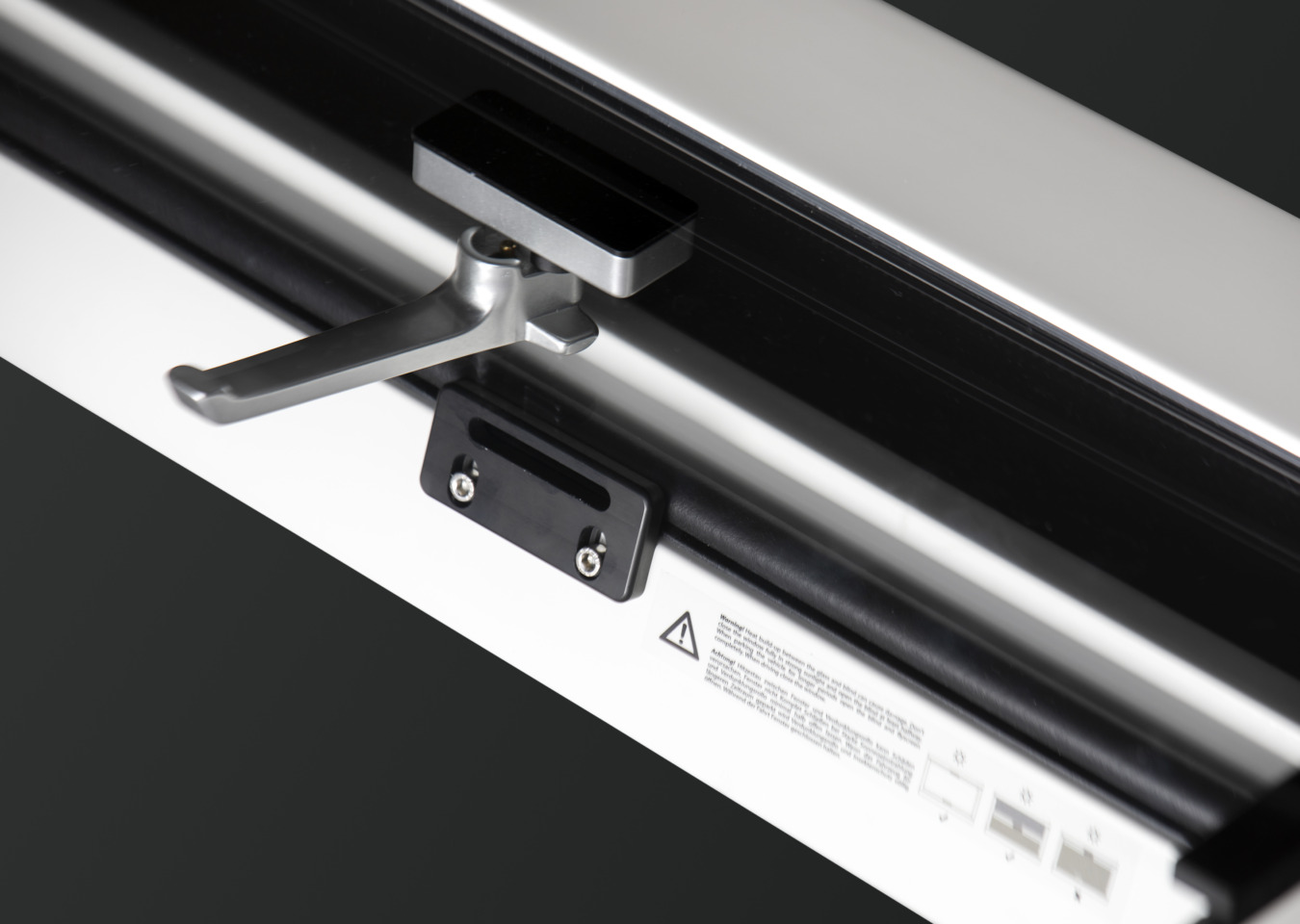

Skylight handle (DG)
Spoiler (SP)
Good to
know
Tinted glass
With ECE R43 and DOT certification mark
Over/under pressure system
For unlimited heights
Fiberglass-reinforced plastic outer frame
Approximate color: RAL 9003
Minimum build height
Less than 5 centimeters
Construction without thermal bridge
Based on smart material choices
Opening angle 70⁰
For maximum visibility and ventilation
| Type | Size | Price |
|---|---|---|
| DR-03 | 46 x 33 | €847,- |
| DR-05 | 25 x 66 | €859,- |
| DR-20 | 65 x 40 | €878,- |
| DR-30 | 60 x 50 | €943,- |
| DR-40 | 99 x 60 | €1256,- |
- Dimensions are the visible glass dimensions. So dimensions of the plane through which you can see outside.
- Only the DR-05 opens on the short side.
- Our prices do not include VAT.
| Type | Fits on | Price |
|---|---|---|
| Cover plate RCP-03 | DR-03 | €137,- |
| Cover plate RCP-05 | DR-05 | €142,- |
| Cover plate RCP-20 | DR-20 | €162,- |
| Cover plate RCP-30 | DR-30 | €177,- |
| Cover plate RCP-40 | DR-40 | €218,- |
| Skylight handle DG | €39,- | |
| Spoiler SP-80 | €121,- | |
| Spoiler SP-115 | €139,- |
- Our prices do not include VAT.
What wall thicknesses are Outbound roof windows suitable for?
Combined with combi-screen, our skylights are easy to use in a roof of 30 to 85 millimeters. If the roof thickness is less than 30 millimeters, the roof must be filled and reinforced on the inside by means of a frame. With a roof thickness above 85 millimeters, an opening is created between the frame and the roller blind.
Without a combi-screen, our skylights are easy to use in a roof of 35 to 75 millimeters. If the roof thickness is less than 35 millimeters, the roof must be filled and reinforced on the inside by means of a frame. For roof thicknesses above 75 millimeters, the frame does not extend to the interior side of the roof.
Does the roof window come with a roller blind?
The combi-screen is an option added by most customers, but is not necessary. For more information, go to roller blinds.
Are deviating sizes possible?
The fiberglass-reinforced plastic frames and roof window edges are produced as a single piece using molds. As a result, we provide beautiful seamless products, but sizes on demand are not available.
Are the products sprayable?
The fiberglass-reinforced plastic frames and skylight edges are gel coated. Sanding these allows the frame to be sprayed without any problems. For this purpose, we can supply the self-adhesive sealing rubbers separately. Please inform us at point of order.
