Hatch
Dimensions and weights

The dimensional specifications and product weight of our Hatches (LU) are listed on this page. Please refer to the information provided here when preparing the installation, handling, or transport of the product.

Print

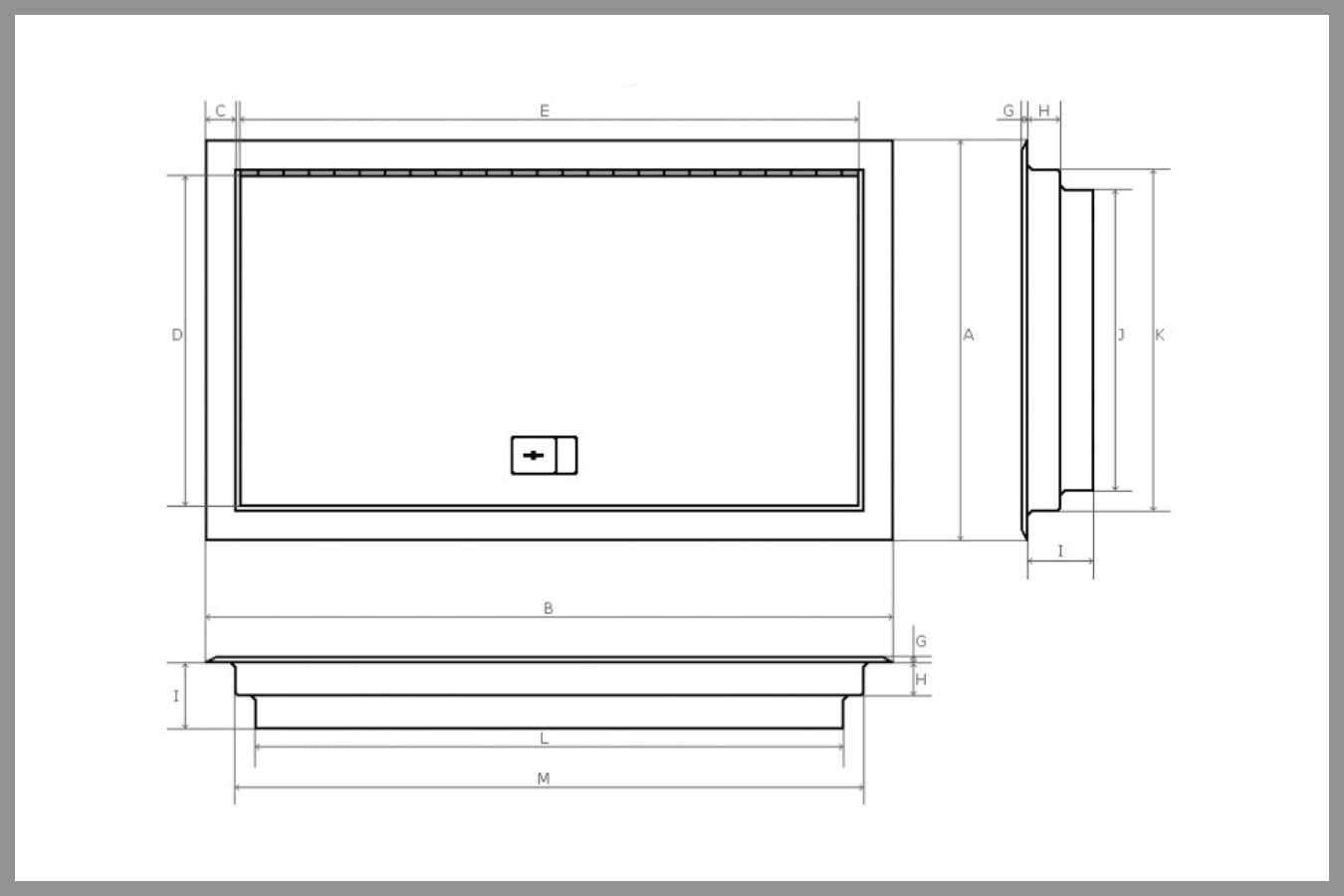

Product Weight A B C D E G H I J K L M
LU-03 5,5 kg 451 581 36 364 494 4 42 * 324 386 454 516
LU-20 7,4 kg 521 770 36 434 683 4 42 * 394 456 643 705
LU-30 8,1 kg 620 720 36 533 633 4 42 * 493 555 593 655
LU-35 9,9 kg 519 1109 36 432 1022 4 42 * 392 454 982 1044
LU-38 10,6 kg 720 913 36 633 826 4 42 * 593 655 786 848
LU-40 13,3 kg 720 1109 36 633 1022 4 42 * 593 655 982 1044
LU-42 13,5 kg 618 1310 36 531 1223 4 42 * 491 553 1183 1245
LU-48 24,0 kg 1093 1288 36 1006 1201 4 42 * 966 1028 1161 1223
LU-50 23,7 kg 669 1822 36 582 1735 4 42 * 542 604 1695 1757
LU-55 26,5 kg 742 1822 36 655 1735 4 42 * 615 677 1695 1757
LU-60 28,6 kg 742 1988 36 655 1901 4 42 * 615 677 1861 1923

* Depends on wall thickness.

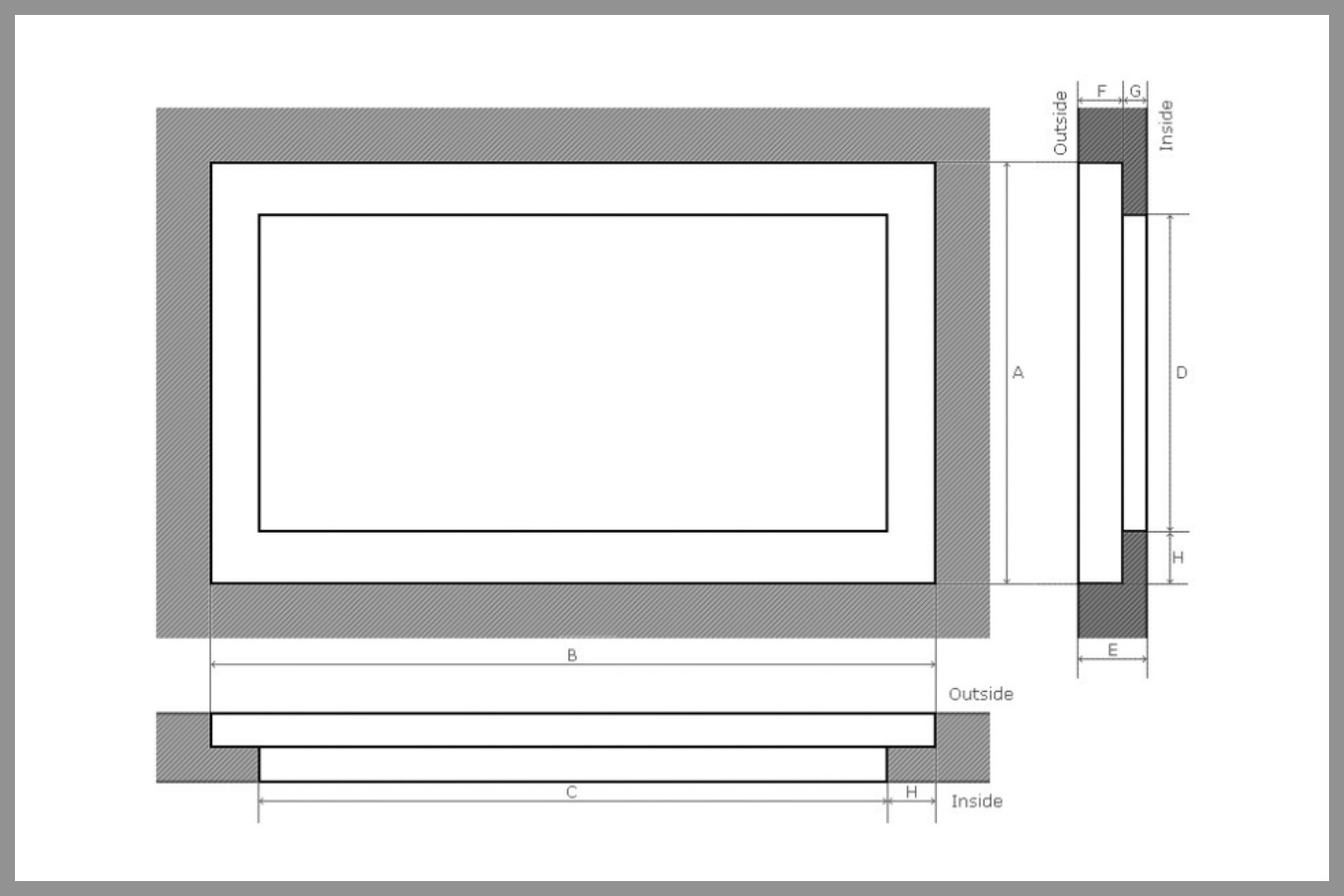

Product A B C D E F G H
LU-03 400 530 470 340 * 42 * 30
LU-20 470 719 659 410 * 42 * 30
LU-30 569 669 609 509 * 42 * 30
LU-35 468 1058 998 408 * 42 * 30
LU-38 669 862 802 609 * 42 * 30
LU-40 669 1058 998 609 * 42 * 30
LU-42 567 1259 1199 507 * 42 * 30
LU-48 1042 1237 1177 982 * 42 * 30
LU-50 618 1771 1711 558 * 42 * 30
LU-55 691 1771 1711 631 * 42 * 30
LU-60 691 1937 1877 631 * 42 * 30

* Depends on wall thickness.

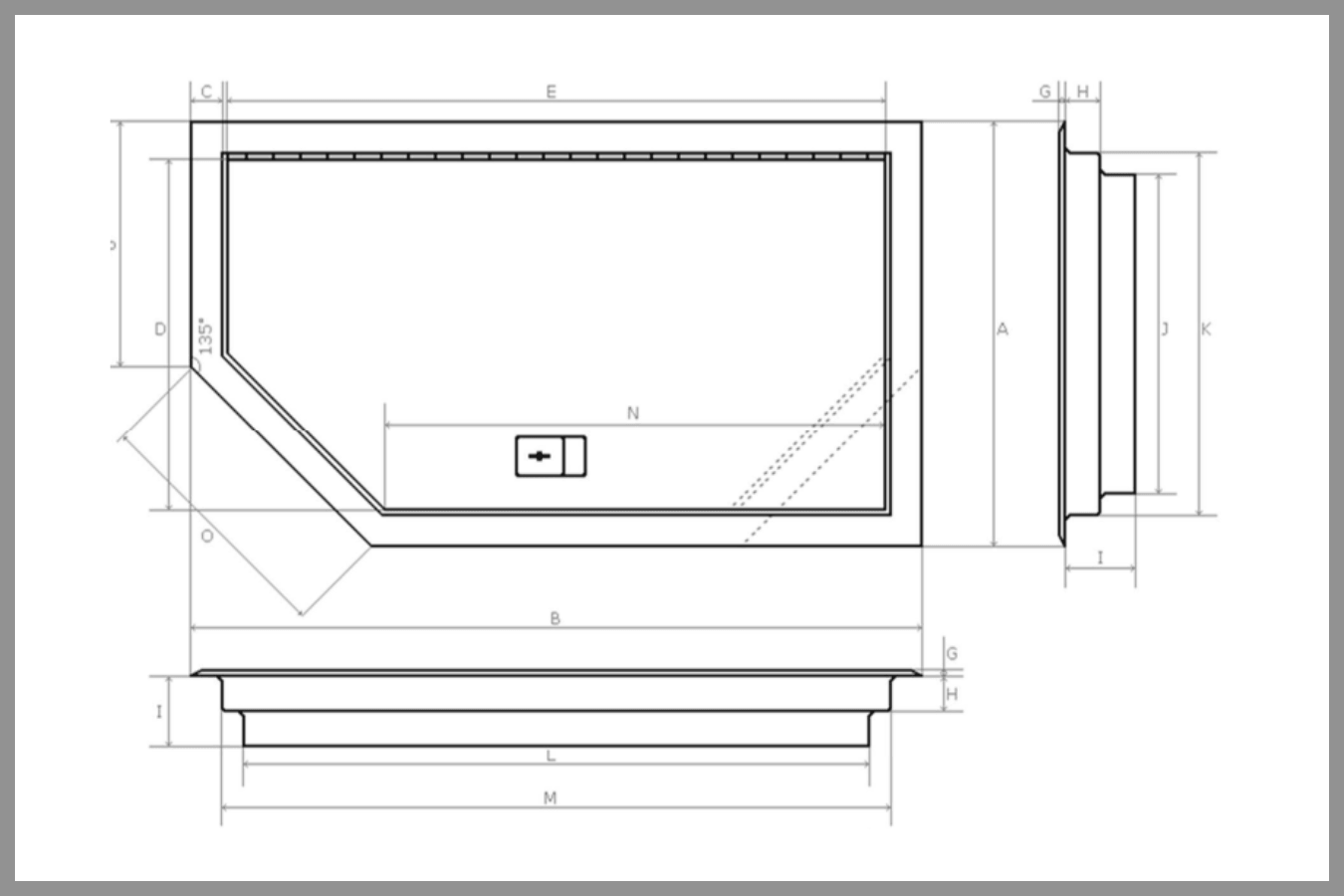

Product Weight A B C D E G H I J K L M N O P
LU-45R 12,9 kg 720 1109 36 633 1022 4 42 * 593 655 982 1044 760 405 436
LU-45L 12,9 kg 720 1109 36 633 1022 4 42 * 593 655 982 1044 760 405 436
LU-47R 13,4 kg 939 1163 36 852 1076 4 42 * 812 874 1036 1098 670 610 506
LU-47L 13,4 kg 939 1163 36 852 1076 4 42 * 812 874 1036 1098 670 610 506

* Depends on wall thickness.

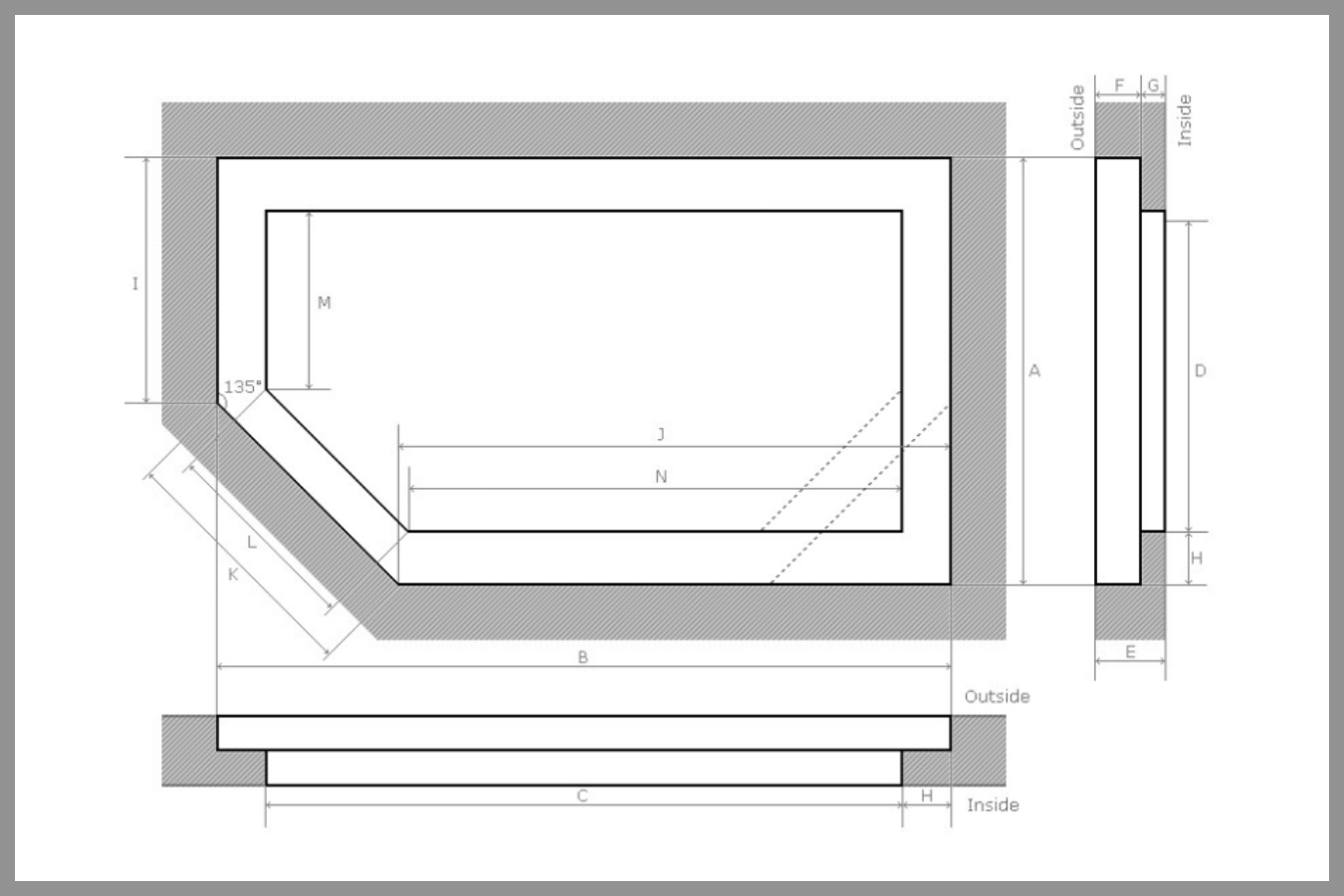

Product A B C D E F G H I J K L M N
LU-45R 669 1058 998 609 * 42 * 30 397 786 386 361 354 743
LU-45L 669 1058 998 609 * 42 * 30 397 786 386 361 354 743
LU-47R 888 1112 1052 828 * 42 * 30 471 695 591 566 428 652
LU-47L 888 1112 1052 828 * 42 * 30 471 695 591 566 428 652

* Depends on wall thickness.
